TubeFlow PIC

One-Stop Modeling Solution - Wellbore Production, Intervention, and Completion Software
TubeFlow PIC is a transient flow simulator that can be used to model well production, intervention, and completion operations with coiled tubing, wireline, and drill string.

TubeFlow PIC 7.0

One-Stop Software Solution for Wellbore Production, Intervention, and Completion

Evaluate Now

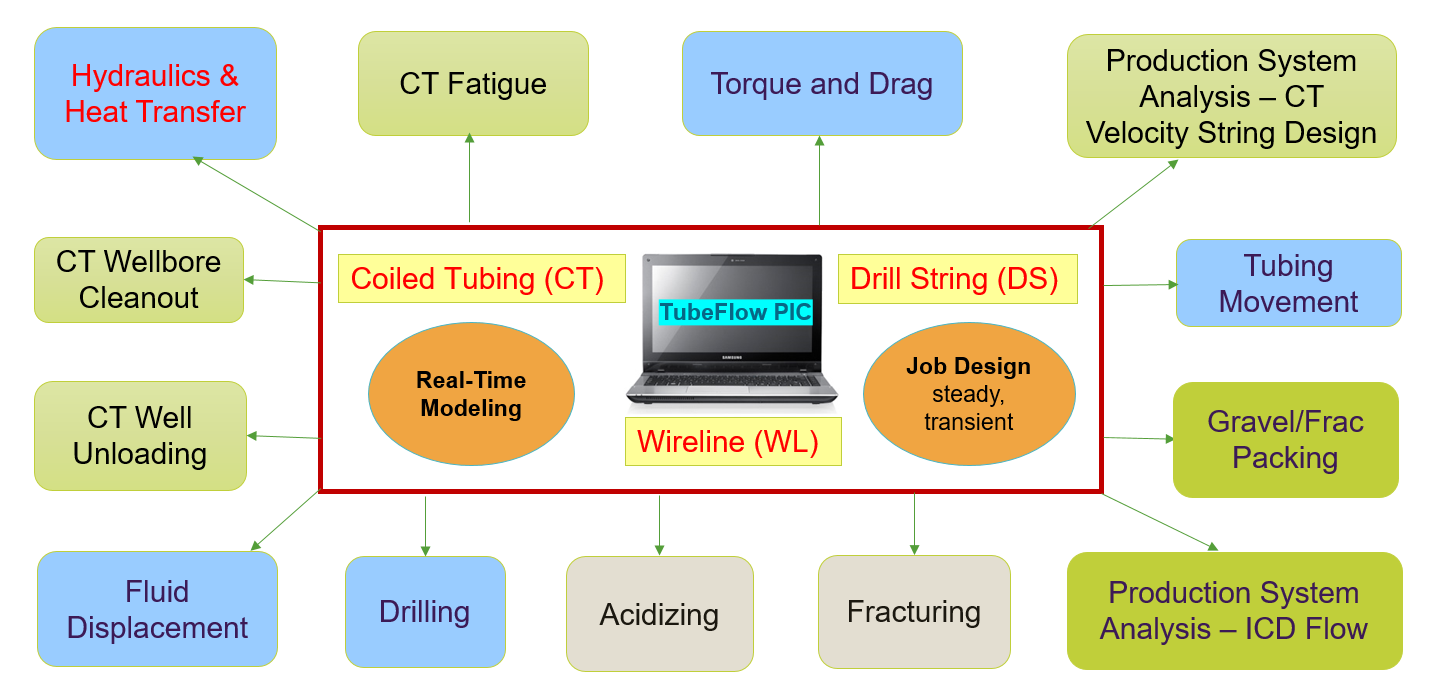

Product Overview

Overview: TubeFlow PIC is a transient flow simulator for modeling well production, intervention, and completion operations with coiled tubing, wireline, and drill string.

Software Suites

TubeFlow PIC for Coiled Tubing Applications

Coiled Tubing Intervention Software

TubeFlow PIC is a transient wellbore flow simulator that can be utilized to model various coiled tubing operations. Coiled tubing hydraulics, tubing force analysis, fatigue life tracking, wellbore cleanout, well unloading, and matrix treatments are all modeled in a single package.

Details
TubeFlow PIC for Coiled Tubing, Coiled Tubing Software Suite

TubeFlow PIC for Wireline Operations

Wireline Intervention Software

TubeFlow PIC is a transient wellbore flow simulator that can be utilized to model wireline intervention operations. Production/injection hydraulics with reservoir interaction, wireline cable forces, and pump down analysis are modeled in the wireline software suite.

Details
TubeFlow PIC for wireline, Wireline Software Suite

TubeFlow PIC for Production/Injection Applications

Production Enhancement Software

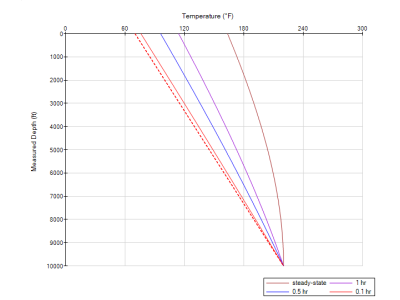

This software suite includes capability to model well production and injection operations with effects of heat transfer from/to the surrounding environment (formation, sea). Tubing movement during production, injection, and circulation is modeled comprehensively. In addition, matrix treatments including acidizing and chemical sand consolidation treatments can be modeled in the production enhancement software suite.

Details
TubeFlow PIC for production enhancement, Production/Injection Software Suite

TubeFlow PIC for Sand Control Applications

Sand Control Software

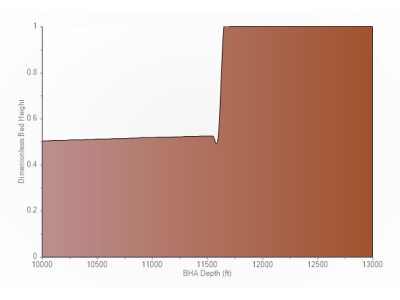

TubeFlow PIC for sand contol models gravel pack operations in cased and open holes from both steady-state and transient viewpoints. This software suite also simulates work string intervention during gravel/frac pack jobs and can be utilized to perform production system analysis with inflow control devices (ICD) screens.

Details
TubeFlow PIC for sand control, Sand control Software Suite

Configurations and Fluid Systems

Wellbore and Intervening Tubing Configuration

TubeFlow PIC provides a database of standard pipe sizes to configure well tubulars, capillary string, coiled tubing, wireline, and drill string.

  • Well module - complex well configurations
  • Pipe module - coiled tubing, drill string, wireline, and BHA configurations
  • survey import/export

Fluid Systems

In TubeFlow PIC, a list of pre-configured fluids that commonly flow in wellbores is provided for convenience and ease of use. Moreover, flexibility exists to create user-defined fluids for use in a particular project. Fluid systems that can be modeled include, but are not limited to:

  • fresh water, produced water, seawater, steam
  • acid, single and multiple salt brine
  • black oil, gas mixtures
  • diesel, kerosene
  • foam, emulsion


Features

  • easy-to-use, quick calculations, sensitivity analysis
  • project configuration includes import/export/email features
  • English, SI, customizable units
  • non-Newtonian and multiphase flow modeling with heat transfer
  • multicomponent modeling and PVT properties through seamless integration with Fluid Properties utility
  • graphical capabilities include save and compare options
  • reporting includes printing to HTML and exporting data to MS Excel


Information

A full featured evaluation version is available for 15 days. Please contact us for more information.

Evaluate Now Contact Us
